Commercial Refrigeration
商用冷柜 — ventilated undercounter cabinets in chiller and freezer versions, plus glass door island merchandisers for chilled and frozen display.
All eight TUC undercounter models use R290 refrigerant (GWP 3) with Cubigel compressors and Dixell digital controllers, and run from190 L to 470 L net capacity. The R suffix is the chiller version (+33 ~ +41 °F); the F suffix is the freezer version (−10 ~ +10 °F). Both share identical case dimensions — only the temperature class differs.
TUC — undercounter cabinet, rear panel
Chiller version, +33 ~ +41 °F (0 ~ 5 °C). SS430 exterior, pre-coated aluminium interior, automatic defrost, EBM fans, lock and key.

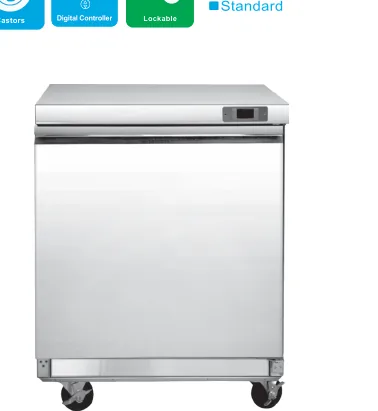

TUC-29R
The smallest of the range. 190 L / 6.7 CUFT on a 735 mm footprint, single door and single shelf. 60 units fit a 40 HQ container, the highest density in the TUC family.

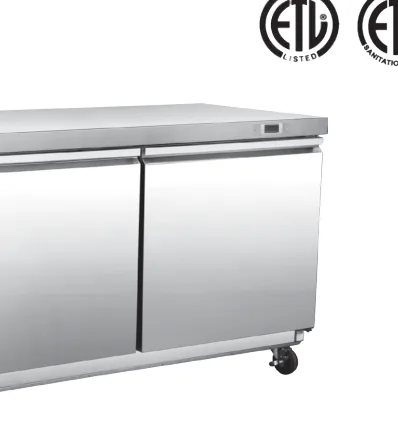

TUC-60R
399 L / 14.1 CUFT on a 1555 mm footprint, two doors and two shelves. 28 units fit a 40 HQ container.
| Model | Unit dimensions (mm) | Net capacity | Temp range | Refrigerant | Doors / shelves | 40 ft load |
|---|---|---|---|---|---|---|
| TUC-29R | 735 × 799 × 966 | 190 L / 6.7 CUFT | +33 ~ +41 °F | R290 | 1 door / 1 shelf | 60 |
| TUC-48R | 1230 × 799 × 966 | 314 L / 11.1 CUFT | +33 ~ +41 °F | R290 | 2 doors / 2 shelves | 46 |
| TUC-60R | 1555 × 799 × 966 | 399 L / 14.1 CUFT | +33 ~ +41 °F | R290 | 2 doors / 2 shelves | 28 |
| TUC-72R | 1827 × 799 × 966 | 470 L / 16.6 CUFT | +33 ~ +41 °F | R290 | 3 doors / 3 shelves | 28 |
TUC-F — undercounter cabinet, front panel
Freezer version, −10 ~ +10 °F (−22 ~ +6 °C). Same dimensions and case construction as the R series; front panel design can be customised to order.

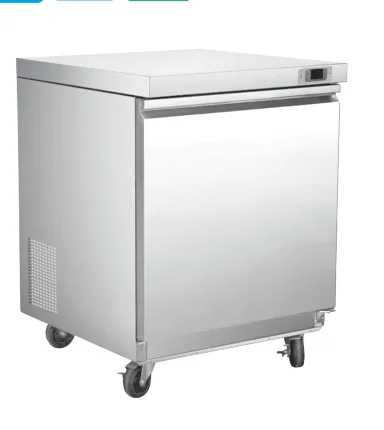

TUC-29F
Single door undercounter freezer on the 190 L footprint. Holds −10 ~ +10 °F on R290, with the same container density as the TUC-29R chiller.

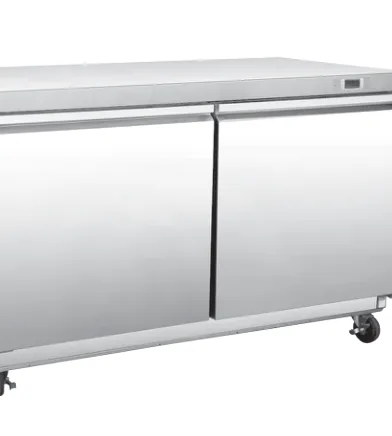

TUC-60F
Two door freezer on the 399 L footprint. Front panel finish can be specified to match the venue, and the custom panel is supplied to order.
| Model | Unit dimensions (mm) | Net capacity | Temp range | Refrigerant | Doors / shelves | 40 ft load |
|---|---|---|---|---|---|---|
| TUC-29F | 735 × 799 × 966 | 190 L / 6.7 CUFT | −10 ~ +10 °F | R290 | 1 door / 1 shelf | 60 |
| TUC-48F | 1230 × 799 × 966 | 314 L / 11.1 CUFT | −10 ~ +10 °F | R290 | 2 doors / 2 shelves | 46 |
| TUC-60F | 1555 × 799 × 966 | 399 L / 14.1 CUFT | −10 ~ +10 °F | R290 | 2 doors / 2 shelves | 28 |
| TUC-72F | 1827 × 799 × 966 | 470 L / 16.6 CUFT | −10 ~ +10 °F | R290 | 3 doors / 3 shelves | 28 |
Packing dimensions — TUC range
| Model | Packing dimensions (mm) | Packing dimensions (inch) |
|---|---|---|
| TUC-29R / TUC-29F | 783 × 847 × 1029 | 30 5/6 × 33 1/3 × 40 1/2 |
| TUC-48R / TUC-48F | 1278 × 847 × 1029 | 50 1/3 × 33 1/3 × 40 1/2 |
| TUC-60R / TUC-60F | 1603 × 847 × 1029 | 63 1/9 × 33 1/3 × 40 1/2 |
| TUC-72R / TUC-72F | 1875 × 847 × 1029 | 73 5/6 × 33 1/3 × 40 1/2 |
DII — glass door island merchandiser
Curved glass island merchandiser with dual temperature zones (+3/+1 °C chilled and −3/−18 °C frozen) for seafood, meat and frozen food display. SECOP compressor, CAREL thermostat, automatic defrost, self-evaporating water receiver.
Refrigerant compliance note — read before ordering
The DII-240G, DII-320G and DII-410G catalogue variants list R404A or R404A/R290. R404A (GWP 3922) is prohibited for self-contained refrigeration equipment placed on the EU market from 1 January 2025 under Regulation (EU) 2024/573. The DII-160G is the only variant confirmed on R290. Contact us before ordering the larger DII models for the EU, UK or Gulf markets so we can confirm the exact refrigerant configuration for your delivery destination.

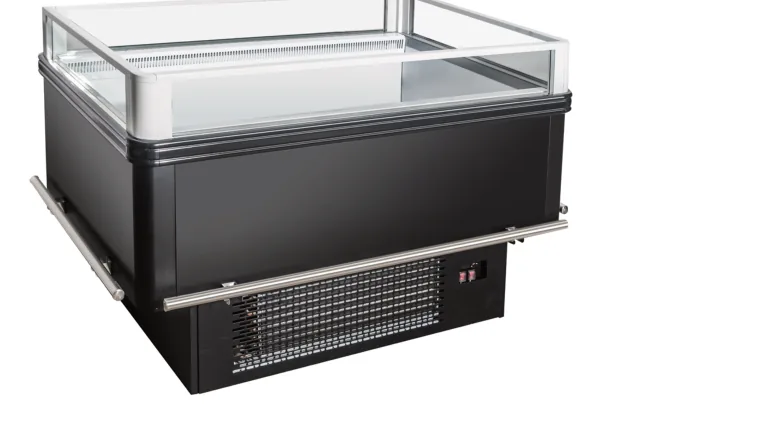

DII-160G — R290
0.66 m² display area, 165 L net capacity. The only DII variant confirmed on R290, and therefore the compliant choice for EU, UK and Gulf delivery.

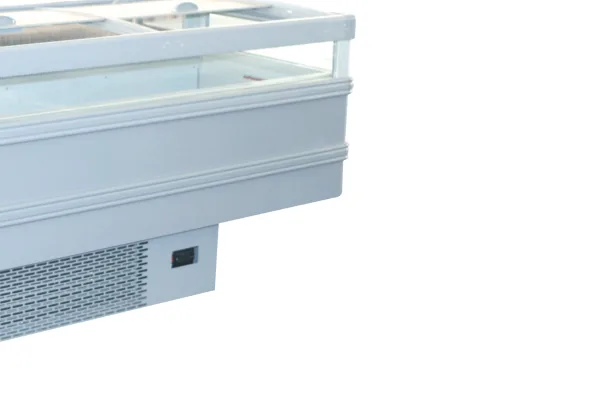

DII-410G — confirm refrigerant
1.78 m² display area, 440 L net capacity. The largest of the range. Catalogue lists R404A/R290 — confirm the delivered refrigerant before ordering for regulated markets.
| Model | Unit dimensions (mm) | Display area | Net capacity | Refrigerant | Compressor | 40 ft load |
|---|---|---|---|---|---|---|
| DII-160G | 1080 × 995 × 950 | 0.66 m² | 165 L | R290 | SECOP | 36 |
| DII-240G | 1613 × 980 × 1122 | 1.03 m² | 260 L | R404A / R290 | SECOP | 28 |
| DII-320G | 2113 × 980 × 1122 | 1.40 m² | 350 L | R404A / R290 | SECOP | 20 |
| DII-410G | 2613 × 980 × 1122 | 1.78 m² | 440 L | R404A / R290 | SECOP | 16 |
Packing dimensions — DII range
| Model | Packing dimensions (mm) | Defrost | Thermostat |
|---|---|---|---|
| DII-160G | 1265 × 1140 × 1160 | Automatic | CAREL |
| DII-240G | 1720 × 1140 × 1200 | Automatic | CAREL |
| DII-320G | 2220 × 1140 × 1200 | Automatic | CAREL |
| DII-410G | 2720 × 1140 × 1200 | Automatic | CAREL |
Common specifications — TUC range
| Exterior material | SS430 stainless steel |
|---|---|
| Interior material | Pre-coated aluminium |
| Cooling system | Ventilated |
| Compressor | Cubigel |
| Controller | Digital (Dixell) |
| Fans | EBM (Germany) |
| Defrost | Automatic defrost cooling system |
|---|---|
| Doors | Reversible, self-close under 90° open |
| Sealing | Magnetic strip, tool-free removal |
| Security | Lock and key |
| Base | Adjustable stainless feet or lockable castors |
| Front panel | Custom design to customer request |
Ordering notes
- Container planning — the TUC-29 packs 60 units per 40 ft high-cube, the TUC-48 packs 46, and the TUC-60 and TUC-72 pack 28 each.
- Mixing R and F — case dimensions are identical across both suffixes, so a single container can carry chiller and freezer units together.
- Certification — ETL and CE documentation is held by the production partner and supplied in the technical file per model.
- Private label — CRS branding and custom front panels available on request.
