Ice Machines
制冰机 — nineteen models from 80 lbs to 1000 lbs output per 24 hours. Cube, nugget, matched storage bins and counter-top dispensers.
The SK cube series covers nine models from 80 to 1000 lbs per 24 hours. The SK-89S through SK-289S are counter-top and under-counter units with 33–80 lbs storage bins. The SK-329 upward are floor-standing units with 300–440 lbs storage. The SK-N nugget series and HD bins run on R290 refrigerant (GWP 3) at 115V / 60Hz single phase.
SK — cube ice machines
Stainless steel cabinet, air-cooled condensing, front water inlet, drain adjustable to 7.87 in. Bullet and crescent cube ice.

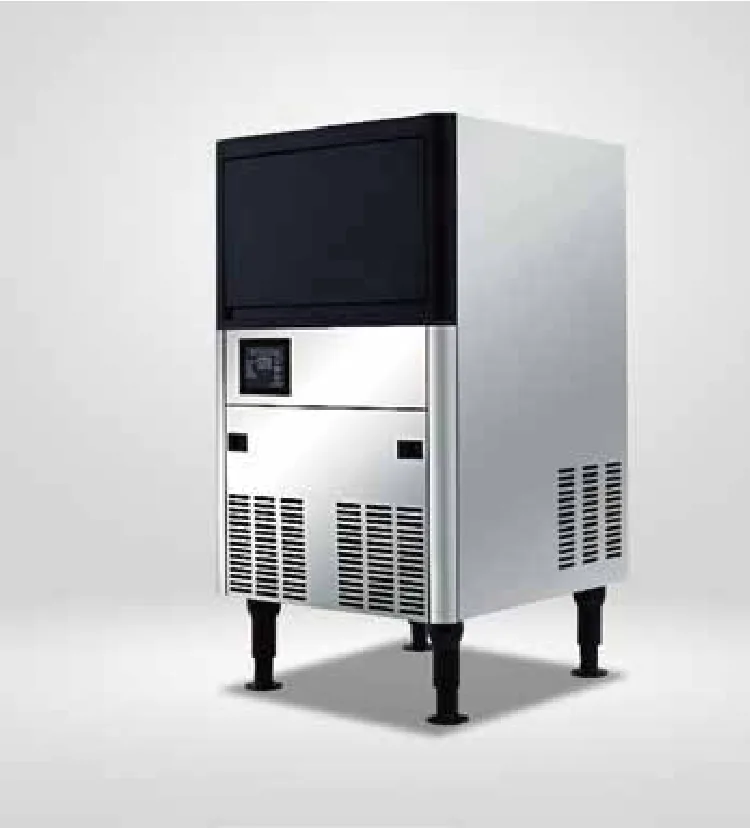

SK-89S
Entry counter-top cube machine. 80 lbs per 24 hours with a 33 lbs storage bin — the smallest format in the SK range, suited to bars and small kitchens.

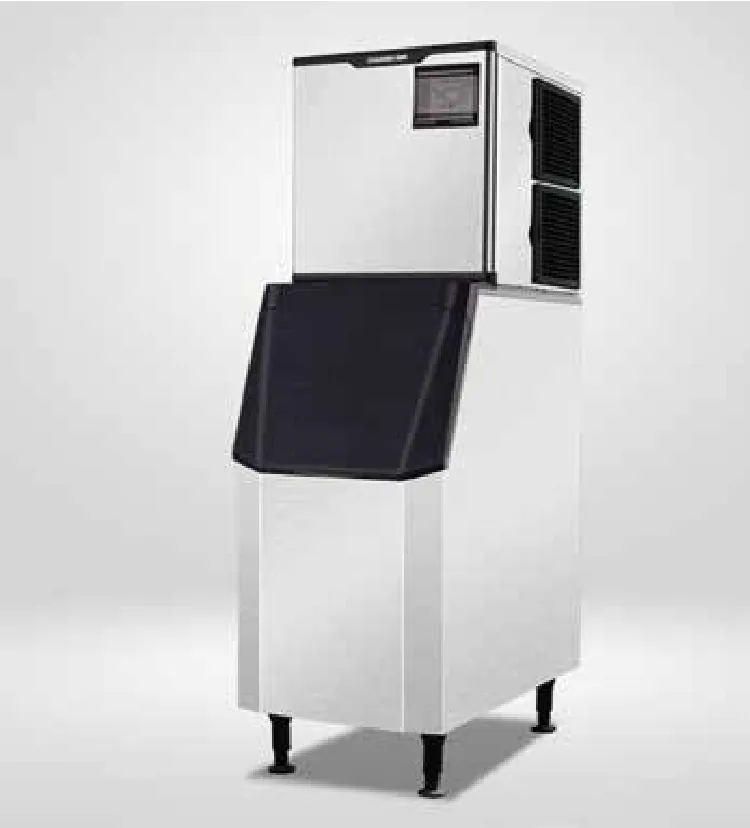

SK-329
Floor-standing cube machine producing 350 lbs per 24 hours into a 300 lbs bin. Pairs with the HD-130B dispenser bin when a larger bin is required.
SK-529
500 lbs per 24 hours with a 440 lbs bin. The mid-point of the large-format SK range, paired with the HD-220B dispenser bin.
| Model | Ice capacity | Ice storage | Power | Gross weight | Net dimensions (W×D×H) |
|---|---|---|---|---|---|
| SK-89S | 80 lbs / 24hrs | 33 lbs | 350 W | 88 lbs | 19.69 × 17.72 × 35.43 in |
| SK-129S | 120 lbs / 24hrs | 40 lbs | 400 W | 110 lbs | 19.69 × 23.23 × 35.43 in |
| SK-169S | 160 lbs / 24hrs | 80 lbs | 450 W | 143 lbs | 26 × 26.96 × 38.18 in |
| SK-219S | 210 lbs / 24hrs | 80 lbs | 526 W | 145 lbs | 26 × 26.96 × 38.18 in |
| SK-289S | 280 lbs / 24hrs | 80 lbs | 726 W | 147 lbs | 26 × 26.96 × 38.18 in |
| SK-329 | 350 lbs / 24hrs | 300 lbs | 780 W | 207 lbs | 22 × 33.8 × 68.7 in |
| SK-529 | 500 lbs / 24hrs | 440 lbs | 1113 W | 264 lbs | 30 × 33.8 × 68.7 in |
| SK-729 | 700 lbs / 24hrs | 440 lbs | 1500 W | 268 lbs | 30 × 33.8 × 68.7 in |
| SK-1029 | 1000 lbs / 24hrs | 440 lbs | 2150 W | 309 lbs | 30 × 33.8 × 75.6 in |
SK-N — nugget ice machines
R290 refrigerant (GWP 3), air-cooled condensing, 115V / 60Hz single phase. Nugget ice has a soft, chewable texture preferred for beverages and health applications.
SK-139N
Compact nugget machine producing 132 lbs per 24 hours into a 44 lbs bin at 350 W. R290, 115V / 60Hz / 1Ph.

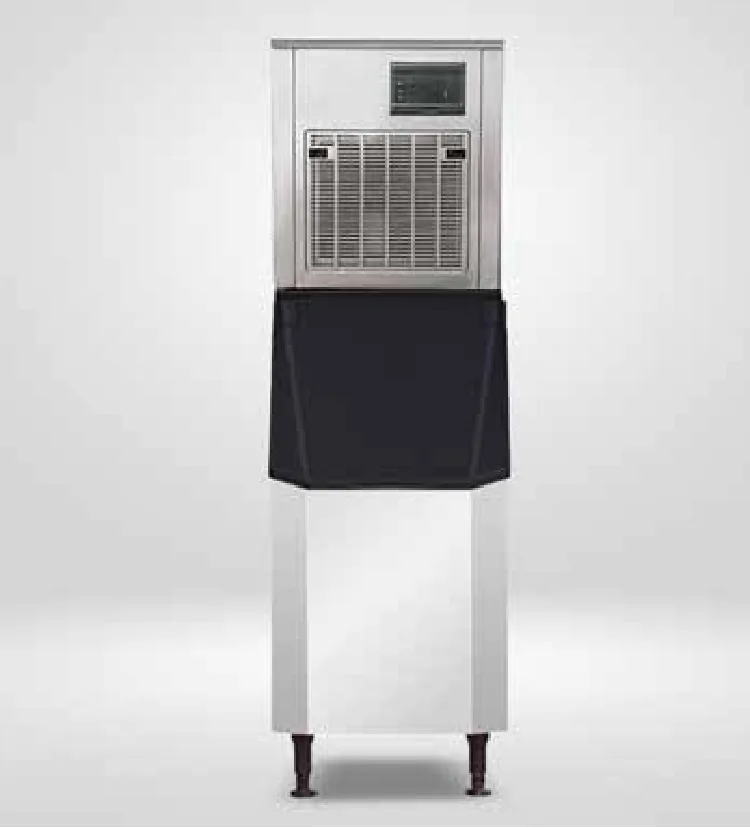

SK-269N
264 lbs per 24 hours with 110 lbs storage at 565 W. R290, 115V / 60Hz / 1Ph.
| Model | Daily output | Storage | Power | Gross weight | Net dimensions | Refrigerant | Voltage |
|---|---|---|---|---|---|---|---|
| SK-139N | 132 lbs / 24hrs | 44 lbs | 350 W | 134 lbs | 20.47 × 22.05 × 37.60 in | R290 | 115V / 60Hz / 1Ph |
| SK-269N | 264 lbs / 24hrs | 110 lbs | 565 W | 247 lbs | 25.59 × 25.98 × 41.34 in | R290 | 115V / 60Hz / 1Ph |
| SK-559N | 550 lbs / 24hrs | 300 lbs | 1180 W | 287 lbs | 22 × 33.8 × 70.6 in | R290 | 115V / 60Hz / 1Ph |
| SK-559G | 550 lbs / 24hrs | 300 lbs | 1180 W | 287 lbs | 22 × 33.8 × 70.6 in | R290 | 115V / 60Hz / 1Ph |
HD — ice dispenser bins
Storage bins with drain and dispense pump, matched to the SK machine heads. The catalogue specifies which head each bin pairs with.

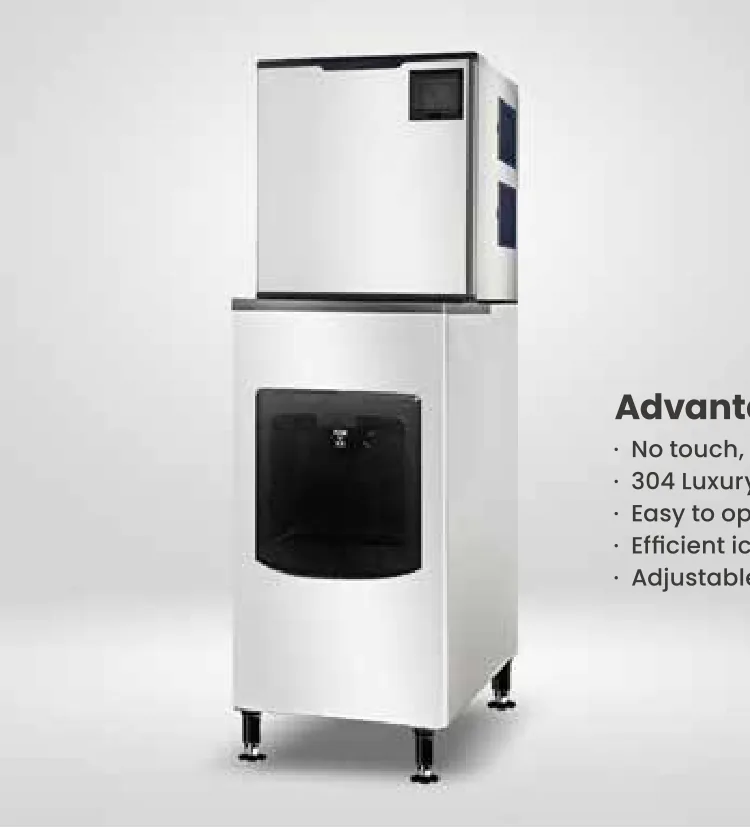

HD-130B
Dispenses 11 lbs per minute from a 132 lbs storage bin at 210 W. Pairs with the SK-329 or SK-429 machine head.
HD-220B
Same 11 lbs per minute dispense rate from a 220 lbs bin at 210 W. Pairs with the SK-529, SK-729 or SK-1029 machine head.
| Model | Dispense rate | Ice storage | Power | Gross weight | Net dimensions | Pairs with |
|---|---|---|---|---|---|---|
| HD-130B | 11 lbs / min | 132 lbs | 210 W | 183 lbs | 22 × 33.7 × 53.5 in | SK-329 / SK-429 head |
| HD-220B | 11 lbs / min | 220 lbs | 210 W | 196 lbs | 30 × 33.66 × 53.54 in | SK-529 / SK-729 / SK-1029 head |
Note: the catalogue lists an SK-429 machine head as compatible with the HD-130B, but does not publish SK-429 output figures in the table shown. Confirm SK-429 availability and specifications with us before quoting that combination.

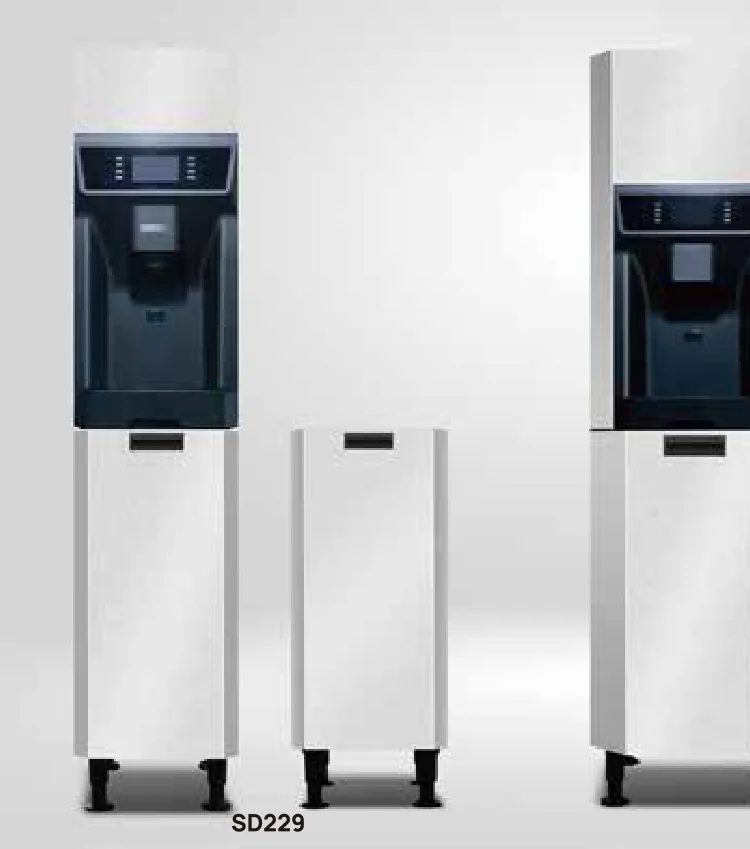

SK-D — commercial cube ice machines
Stainless steel body and door with adjustable stainless steel feet, front water inlet and rear drainage.
Catalogue limitation: the SD series table publishes net weight, gross weight, exterior dimension and packing dimension only. Daily output, refrigerant type and electrical ratings are not listed for the SD229 and SD369. Confirm these figures with us before quoting — we will not publish estimated data.
| Model | Net weight | Gross weight | Exterior dimensions (W×D×H) | Packing dimensions (W×D×H) |
|---|---|---|---|---|
| SD229 | 29 lbs | 35 lbs | 13.7 × 22 × 35.4 in | 15.7 × 23.62 × 31.5 in |
| SD369 | 33 lbs | 44 lbs | 18.1 × 22 × 35.4 in | 20 × 24 × 31.5 in |
SK-DW — counter top nugget ice & water dispenser
Bench-format nugget ice machines with three dispensing options — ice, water, or ice and water. R290 refrigerant, air-cooled condensing, 115V single phase. Resin front panel over a 304 stainless steel body.
| Model | Ice shape | Daily output | Ice storage | Condenser | Refrigerant | Power | Voltage | Net dimensions (with feet) |
|---|---|---|---|---|---|---|---|---|
| SK-229D | Nugget | 220 lbs / 24hrs | 6.2 lbs | Air | R290 | 493 W | 115V / 60Hz / 1Ph | 13.8 × 23.62 × 32.67 in |
| SK-369D | Nugget | 366 lbs / 24hrs | 16.5 lbs | Air | R290 | 634 W | 115V / 60Hz / 1Ph | 18.2 × 23.62 × 37.95 in |
Features: 3 option — ice, water, ice & water. Operation LED touch buttons. Infrared detection. 3 optional cup sizes (small, medium, large). Resin front panel with 304 stainless steel body lock.
Service: sealed refrigeration system resists dust and grease, UV sterilisation function, automatic cleaning system, independent cleaning agent injection port.
Ice shape reference
The catalogue classifies six ice shapes. The SK series produces bullet and crescent cube; the SK-N and SK-DW series produce nugget / granular ice. Photos below are actual ice forms from the production partner.
Cube
Standard cube ice produced by the SK series counter-top and under-counter models. Larger crystal clarity and higher cooling rate than bullet ice.
Bullet
Hollow cylindrical ice with high cooling efficiency. The SK series can be configured for bullet shape; popular for beverages and cocktail service.
Nugget / granular
Soft, chewable nugget ice from the SK-N and SK-DW series. Standard thickness is adjustable between 9 and 15 mm to suit the beverage.
Flake
Thin, soft flakes produced by scraping a control plate. Adjustable between 1 and 2 mm. Used in chilled seafood display and transport applications.
Crescent
Curved crescent form. Better control of drainage and balance in the tumbler than straight cube. The SK series is available in crescent form.
Chewbit
Soft, chewable form that resists melting in a hot drink — a preferred option for fountain beverages, smoothies and health bars.
Installation note: water inlet and power interface are on the rear panel; the drain must not exceed 7.87 in. Confirm inlet and drain positions against your service layout before ordering.
Ordering notes
- Voltage — SK-N nugget models are 115V / 60Hz / 1Ph as catalogue-rated. Confirm supply voltage for other destinations; 220V / 50Hz versions can be quoted on request.
- Water and drain — all SK units need a water inlet and a drain line with a maximum fall of 7.87 in.
- Bin pairing — HD-130B and HD-220B bins are matched to specific SK machine heads per the table above.
- Certification — ETL and CE documentation is held by the production partner and supplied per model.
