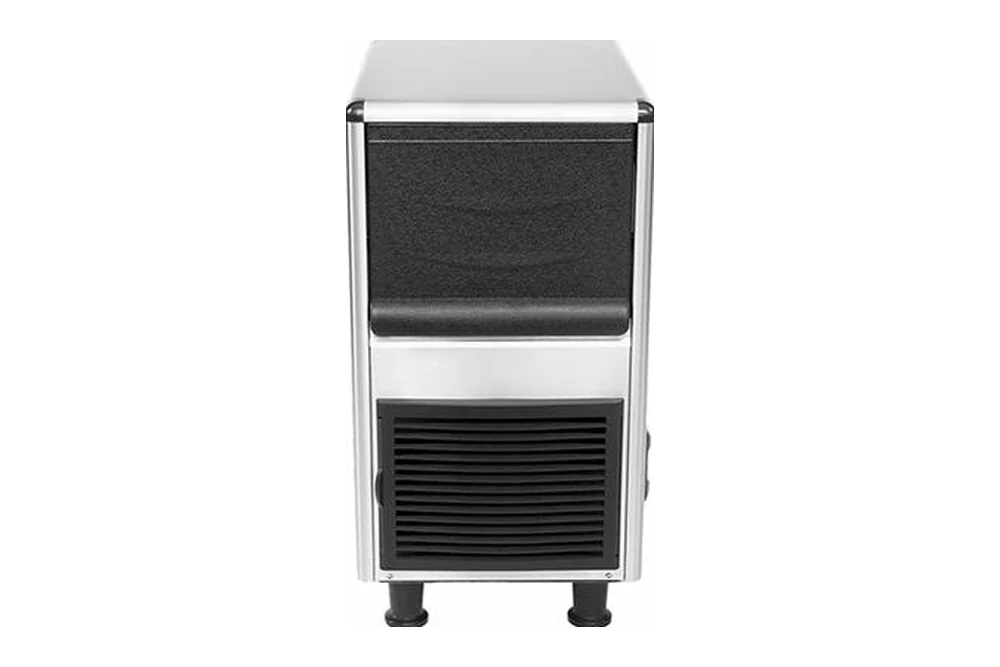

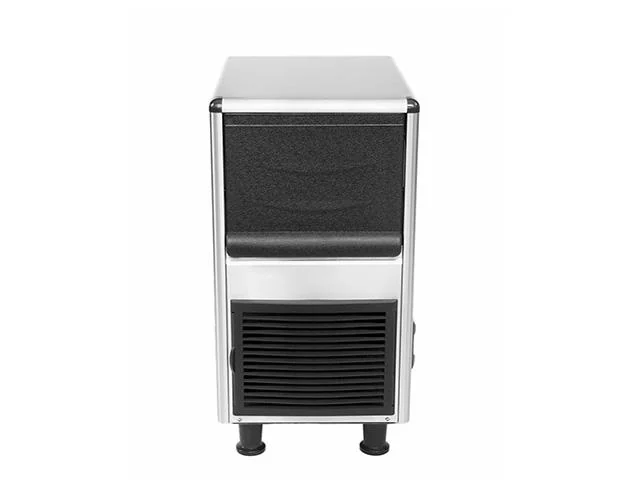

SK-25C / SK-35C
Bullet ice machine — 25 / 35 kg per 24 h. Compact, 25–35 kg.
The smallest machine in the range at 375 × 553 mm, with a 15 kg bin. Built for coffee counters, meeting rooms and mobile catering.
Models and output
Compact, 25–35 kg — 2 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-25C | 25 kg / 24 h | 15 kg | 220 V | 330 W | 43 kg | 375 × 553 × 762 |
| SK-35C | 35 kg / 24 h | 15 kg | 220 V | 350 W | 43 kg | 375 × 553 × 762 |

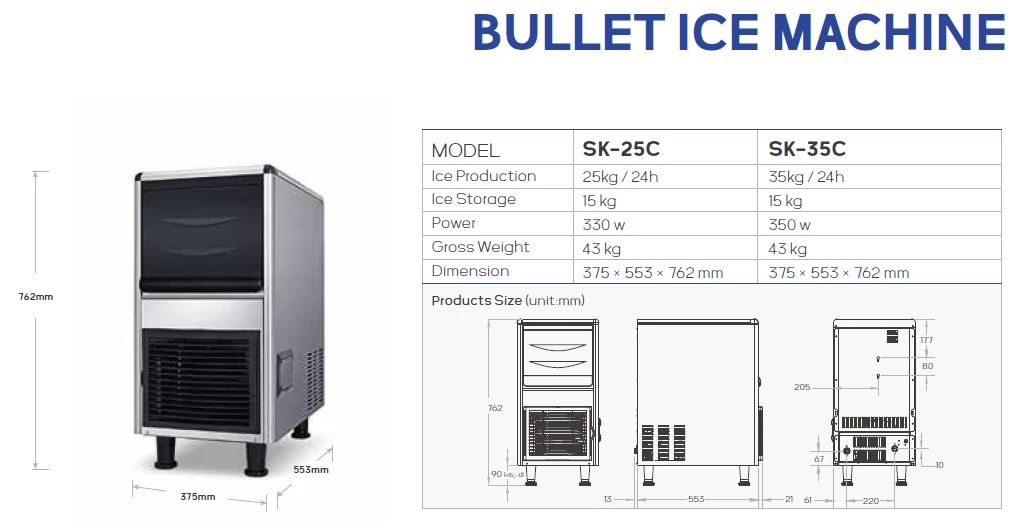

Technical drawing
Standard specification
| Ice shape | Bullet |
|---|---|
| Ice size | Optional |
| Warranty | 3 years |
| Refrigerant | R290 |
| Compressor | Cubigel |
| Cooling system | Air |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Hollow bullet form — fast chilling, clean drainage in the glass
- 3-year warranty as catalogue-published
- R290 refrigerant on both output classes
- Cubigel compressor, air-cooled
