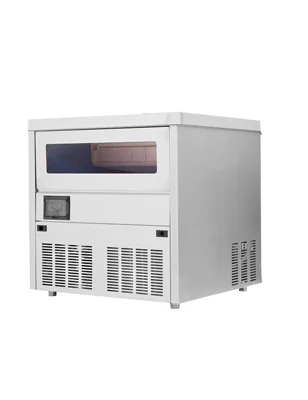

SK-55C / SK-75C
Bullet ice machine — 55 / 75 kg per 24 h. Freestanding, 55–75 kg.
A 666 × 637 mm freestanding bullet machine with a 30 kg bin. Sized for a busy bar or a small fast-food counter.
Models and output
Freestanding, 55–75 kg — 2 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-55C | 55 kg / 24 h | 30 kg | 220 V | 500 W | 71 kg | 666 × 637 × 775 |
| SK-75C | 75 kg / 24 h | 30 kg | 220 V | 670 W | 71 kg | 666 × 637 × 775 |

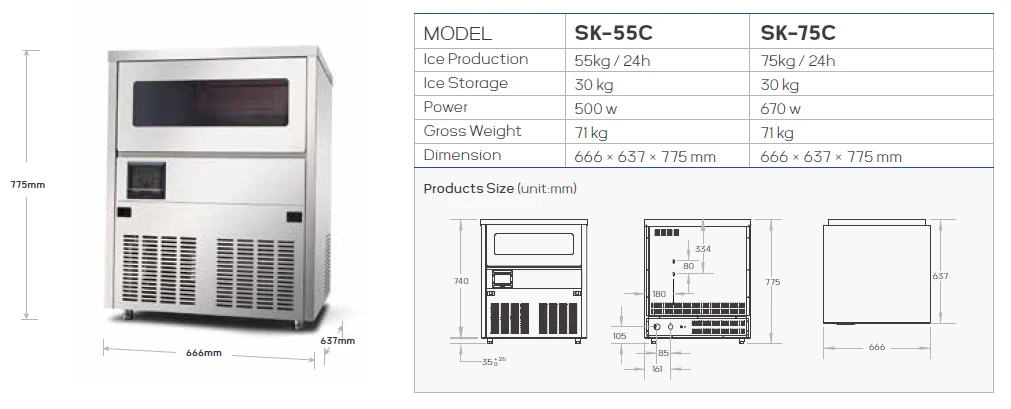

Technical drawing
Standard specification
| Ice shape | Bullet |
|---|---|
| Ice size | Optional |
| Warranty | 3 years |
| Refrigerant | R290 |
| Compressor | Cubigel |
| Cooling system | Air |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Hollow bullet form — fast chilling, clean drainage in the glass
- 3-year warranty as catalogue-published
- R290 refrigerant on both output classes
- Cubigel compressor, air-cooled
