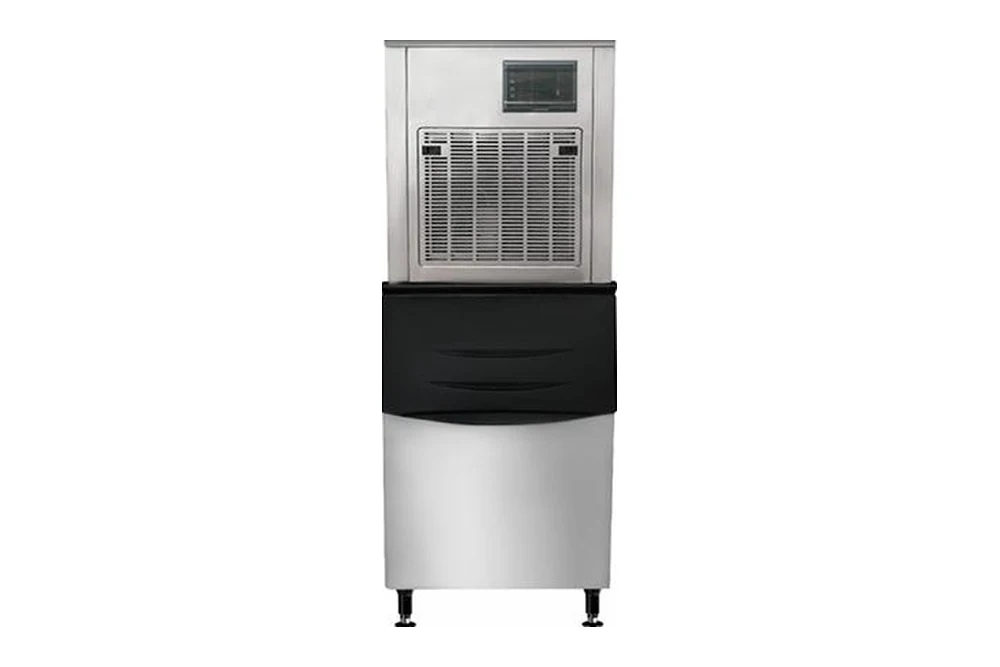

SK-258N
Chewblet ice machine, modular type — 250 kg per 24 h. Modular head, 250 kg.
The 250 kg chewblet head on a 560 × 830 mm body with a 125 kg bin. The usual specification for a cafe or convenience-store fountain station.
Models and output
Modular head, 250 kg — 1 model in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-258N | 250 kg / 24 h | 125 kg | 220 V / 110 V | 1600 W | 140 kg | 560 × 830 × 1760 |

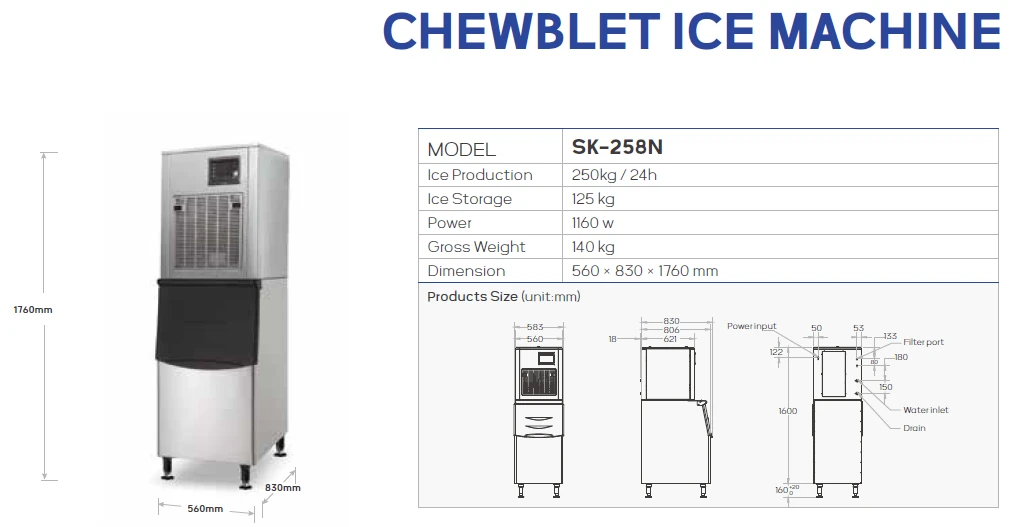

Technical drawing
Standard specification
| Ice shape | Chewblet / Nugget / Pearl |
|---|---|
| Ice size | Optional |
| Refrigerant | R290 |
| Compressor | Highly |
| Cooling system | Air |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Chewblet / nugget / pearl form — soft and chewable
- Holds carbonation and flavour better than harder ice forms
- R290 refrigerant (GWP 3) on the whole series
- Highly compressor, air-cooled
