SK-508N

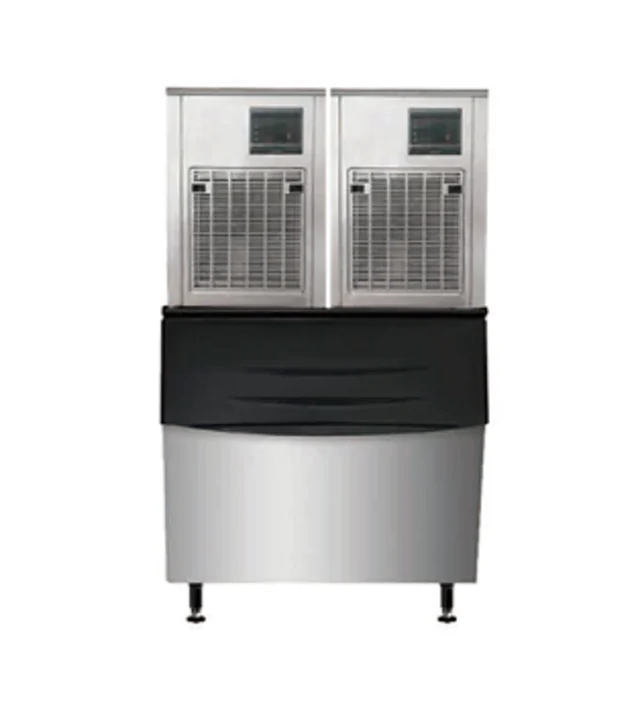

Chewblet ice machine, modular type — 560 kg per 24 h. Modular head, 560 kg.
The highest-output chewblet head in the range, on a twin-head 1227 mm body with a 350 kg bin. R290 throughout.
Models and output
Modular head, 560 kg — 1 model in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-508N | 560 kg / 24 h | 350 kg | 220 V / 110 V | 2600 W | 280 kg | 1227 × 947 × 1904 |

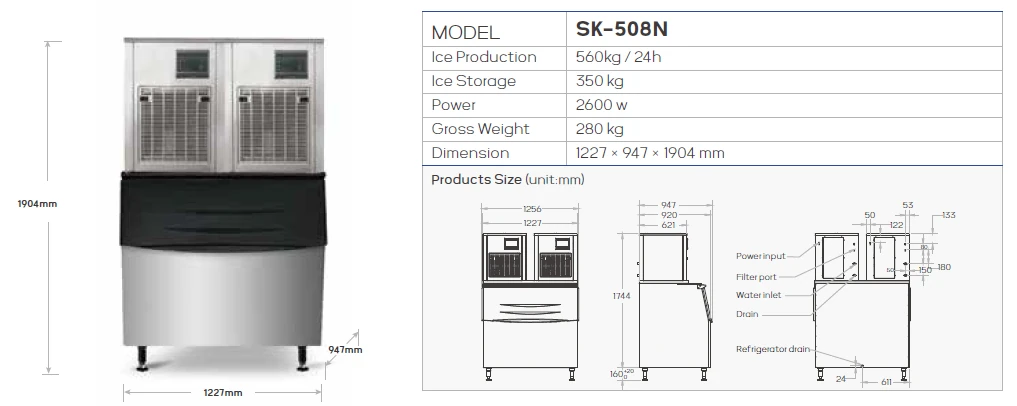

Technical drawing
Standard specification
| Ice shape | Chewblet / Nugget / Pearl |
|---|---|
| Ice size | Optional |
| Refrigerant | R290 |
| Compressor | Highly |
| Cooling system | Air |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Chewblet / nugget / pearl form — soft and chewable
- Holds carbonation and flavour better than harder ice forms
- R290 refrigerant (GWP 3) on the whole series
- Highly compressor, air-cooled
