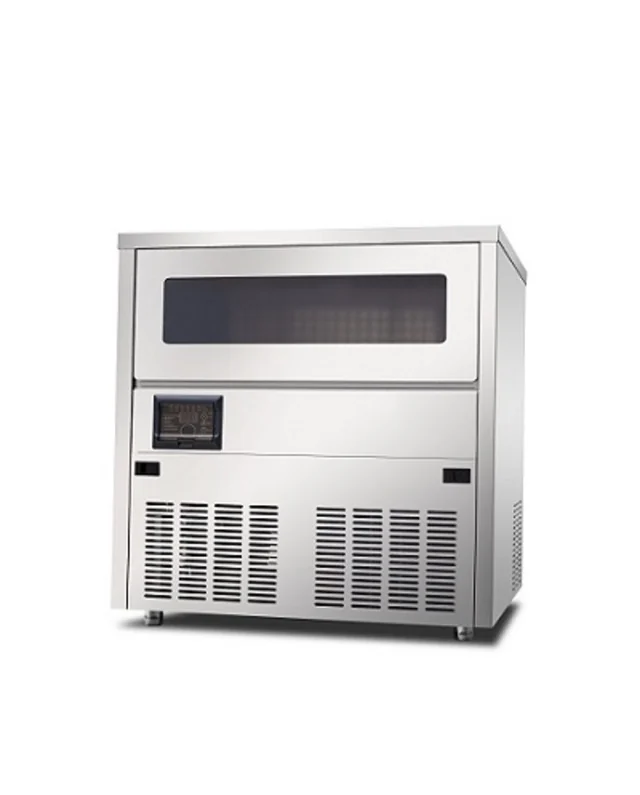

SK-220M / SK-280M
Crescent ice machine — 95 / 127 kg per 24 h. Integrated, 95–127 kg.
Two integrated crescent machines on a 650 mm body with a 40 kg bin, sized for a hotel bar or restaurant service station.
Models and output
Integrated, 95–127 kg — 2 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-220M | 95 kg / 24 h | 40 kg | 220 V / 110 V | 770 W | 70 kg | 650 × 651 × 1063 |
| SK-280M | 127 kg / 24 h | 40 kg | 220 V / 110 V | 780 W | 77 kg | 650 × 651 × 1063 |

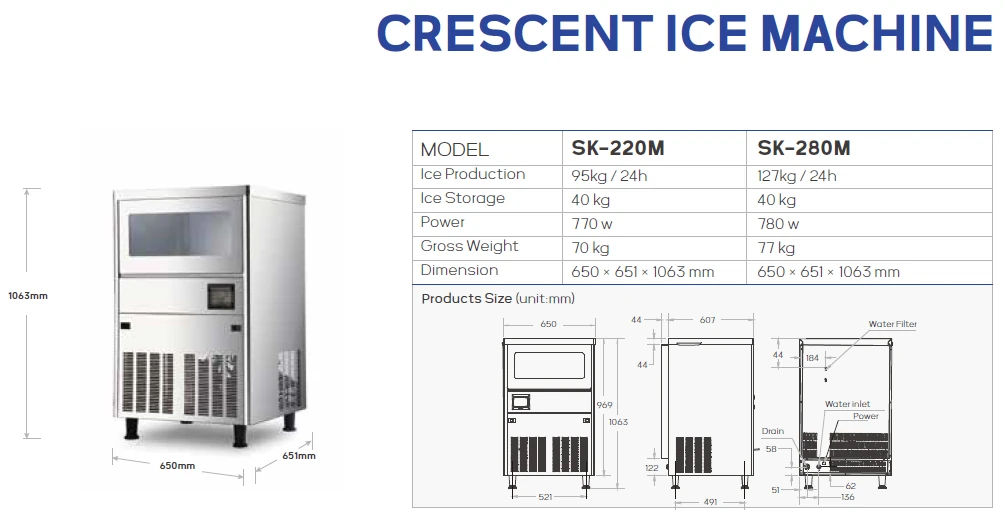

Technical drawing
Standard specification
| Ice shape | Crescent / Moon shaped |
|---|---|
| Ice size | Optional |
| Refrigerant | R404A |
| Compressor | Cubigel |
| Cooling system | Air / Water |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Crescent / moon shape — sits and drains better in the glass
- Air or water condensing
- Fully integrated models and modular heads
- R404A on the whole series
