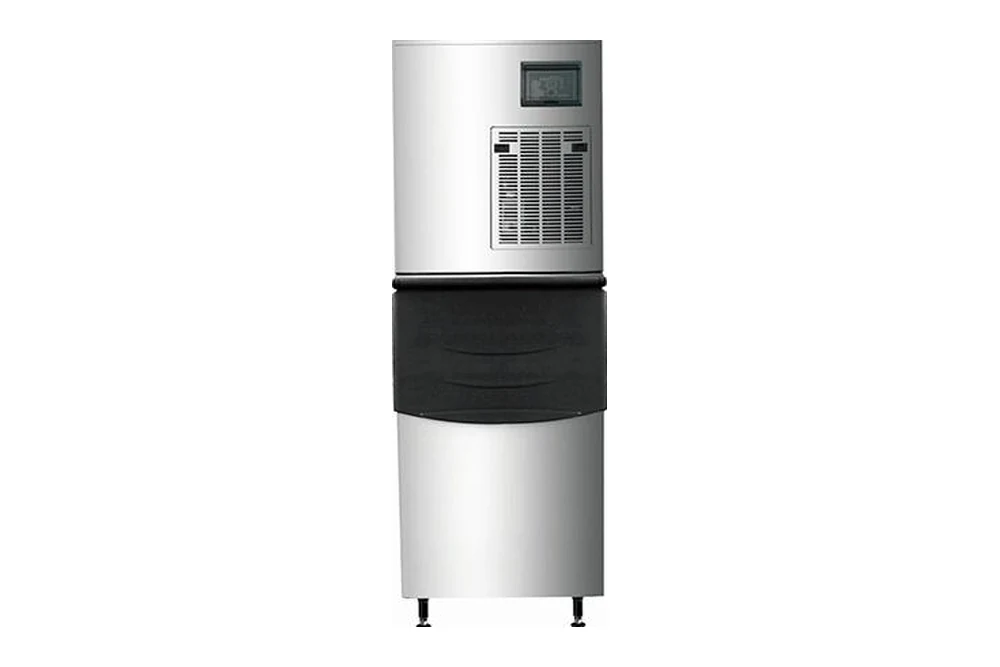

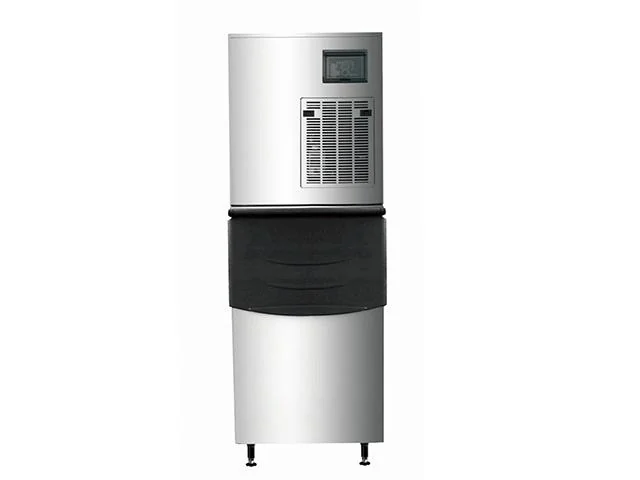

SK-320M / SK-620M
Crescent ice machine, modular type — 145 / 280 kg per 24 h. Modular head, 145–280 kg.
Modular crescent heads with a 125 kg bin. The SK-620M doubles the output of the SK-320M on the same 560 × 830 mm footprint.
Models and output
Modular head, 145–280 kg — 2 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-320M | 145 kg / 24 h | 125 kg | 220 V / 110 V | 850 W | 118 kg | 560 × 830 × 1897 |
| SK-620M | 280 kg / 24 h | 125 kg | 220 V / 110 V | 1800 W | 131 kg | 560 × 830 × 1897 |

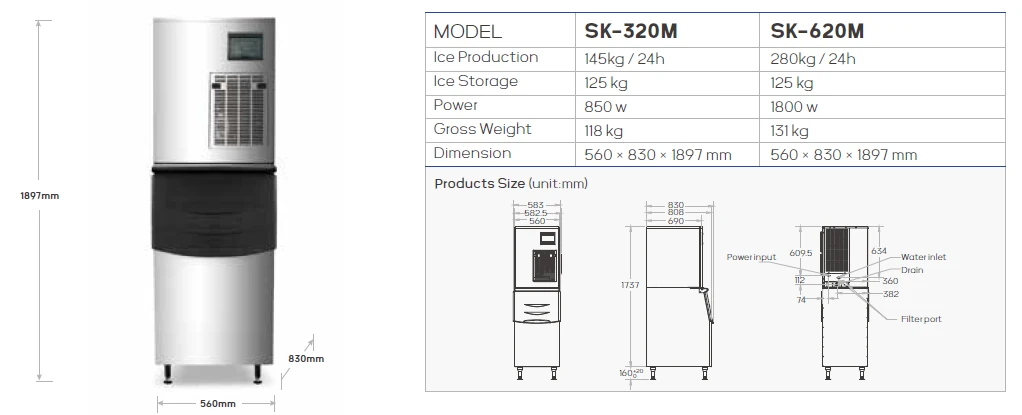

Technical drawing
Standard specification
| Ice shape | Crescent / Moon shaped |
|---|---|
| Ice size | Optional |
| Refrigerant | R404A |
| Compressor | Highly |
| Cooling system | Air / Water |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Crescent / moon shape — sits and drains better in the glass
- Air or water condensing
- Fully integrated models and modular heads
- R404A on the whole series
