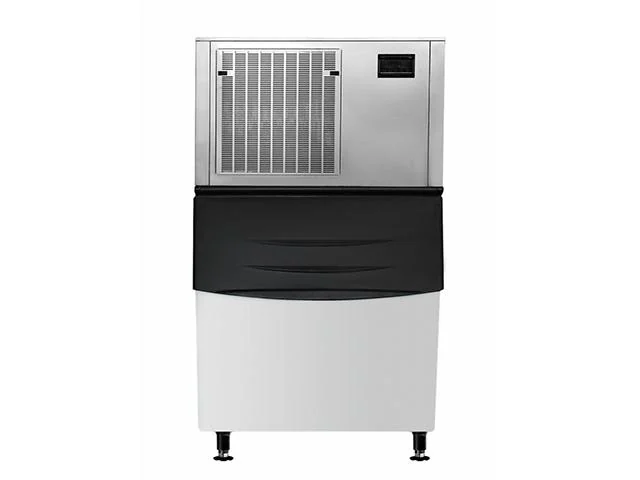

SK-103 / SK-123 / SK-153
Flake ice machine, modular type — 1000 / 1200 / 1500 kg per 24 h. Three phase, 1000–1500 kg.
Three-phase high-output flake heads with a 350 kg bin, for fish markets, processing floors and central kitchens.
Models and output
Three phase, 1000–1500 kg — 3 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-103 | 1000 kg / 24 h | 350 kg | 380 V / 3P | 6200 W | 330 kg | 1227 × 945 × 2160 |
| SK-123 | 1200 kg / 24 h | 350 kg | 380 V / 3P | 6300 W | 330 kg | 1227 × 945 × 2160 |
| SK-153 | 1500 kg / 24 h | 350 kg | 380 V / 3P | 7400 W | 350 kg | 1227 × 945 × 2160 |

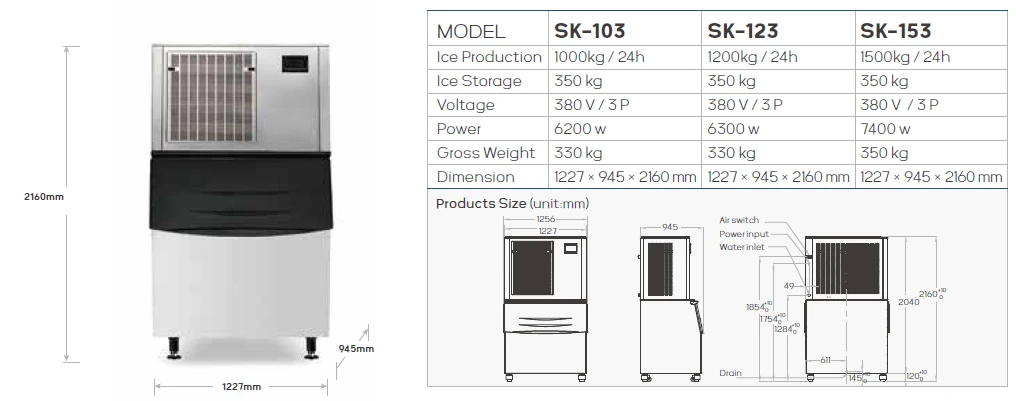

Technical drawing
Standard specification
| Ice shape | Flake / Chips / Slice |
|---|---|
| Ice size | Optional |
| Refrigerant | R404A |
| Compressor | Highly |
| Cooling system | Air |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Flake / chip form — maximum contact area, fastest chilling
- Compact single-phase models and high-output three-phase heads
- Roomy 170–350 kg storage bins for a full trading day
- Air-cooled, drain and water inlet on the rear panel
