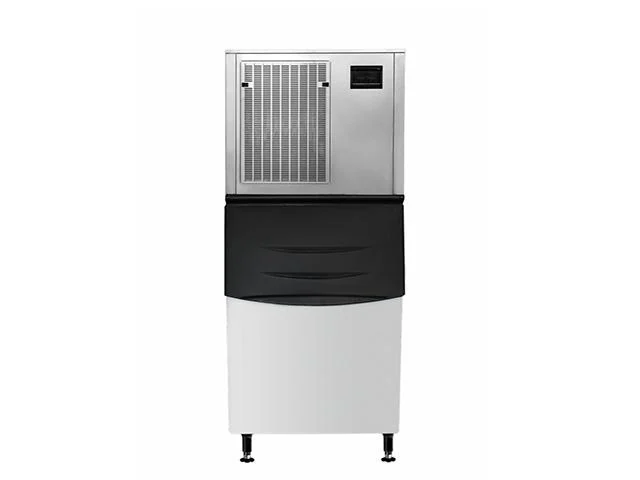

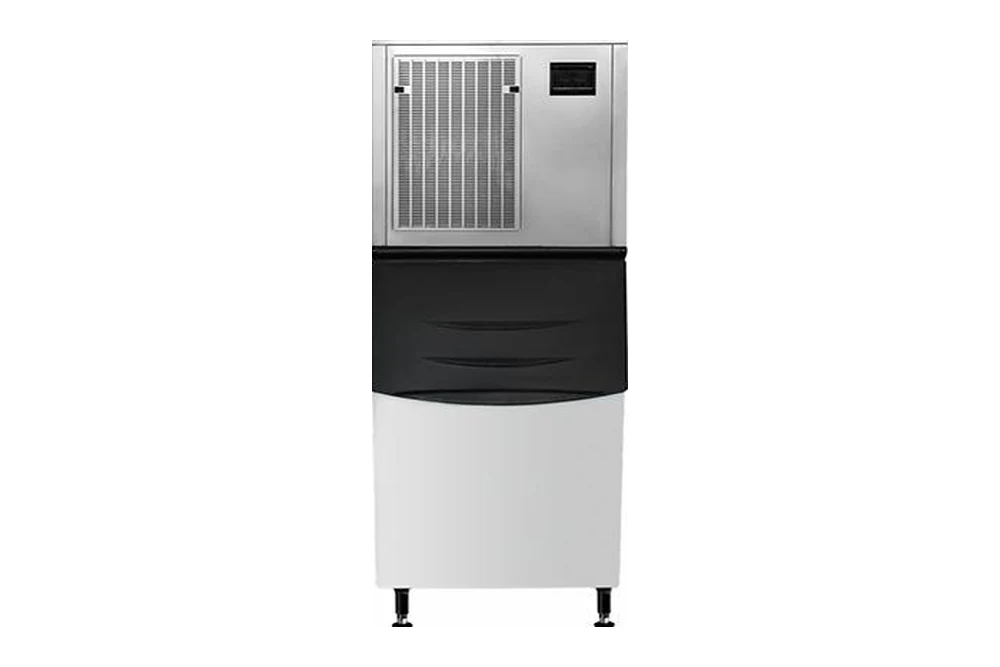

SK-033 / SK-053 / SK-083
Flake ice machine, modular type — 300 / 500 / 800 kg per 24 h. Single phase, 300–800 kg.
Single-phase flake heads on the 760 mm platform with a 170 kg bin, so they can be installed where three-phase power is not available.
Models and output
Single phase, 300–800 kg — 3 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-033 | 300 kg / 24 h | 170 kg | 220 V / 1P | 1880 W | 180 kg | 760 × 829 × 1795 |
| SK-053 | 500 kg / 24 h | 170 kg | 220 V / 1P | 2750 W | 195 kg | 760 × 829 × 1950 |
| SK-083 | 800 kg / 24 h | 170 kg | 220 V / 1P | 3800 W | 200 kg | 760 × 829 × 1950 |

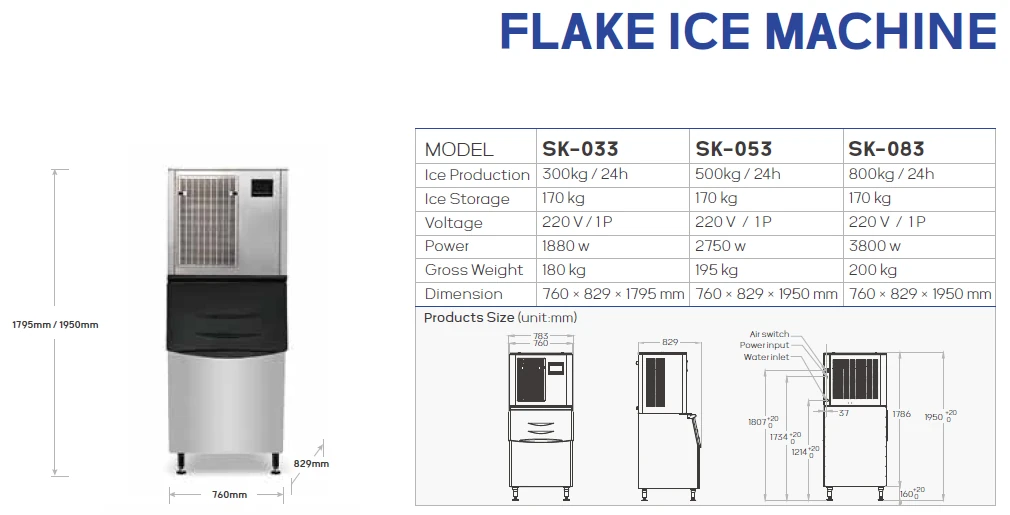

Technical drawing
Standard specification
| Ice shape | Flake / Chips / Slice |
|---|---|
| Ice size | Optional |
| Refrigerant | R404A |
| Compressor | Highly |
| Cooling system | Air |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Flake / chip form — maximum contact area, fastest chilling
- Compact single-phase models and high-output three-phase heads
- Roomy 170–350 kg storage bins for a full trading day
- Air-cooled, drain and water inlet on the rear panel
