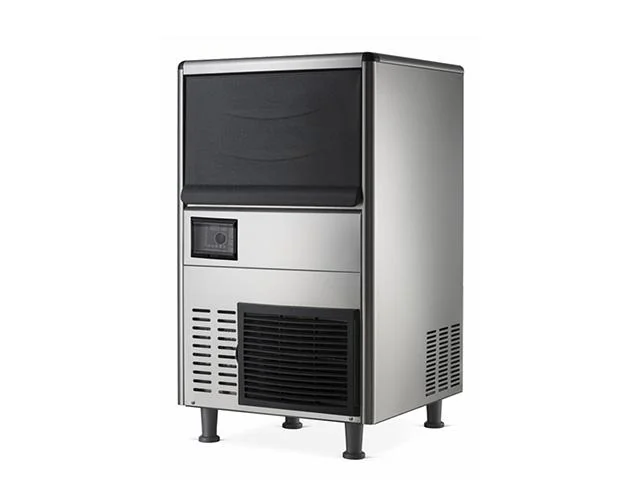

SK-068F / SK-128F
Granular ice machine — 60 / 120 kg per 24 h. Compact, 60–120 kg.
Two compact granular machines for a single fish counter or a deli case. The SK-068F is the smallest body in the range at 520 mm wide.
Models and output
Compact, 60–120 kg — 2 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-068F | 60 kg / 24 h | 20 kg | 220 V / 110 V | 300 W | 61 kg | 520 × 560 × 955 |
| SK-128F | 120 kg / 24 h | 50 kg | 220 V / 110 V | 680 W | 112 kg | 650 × 660 × 1050 |

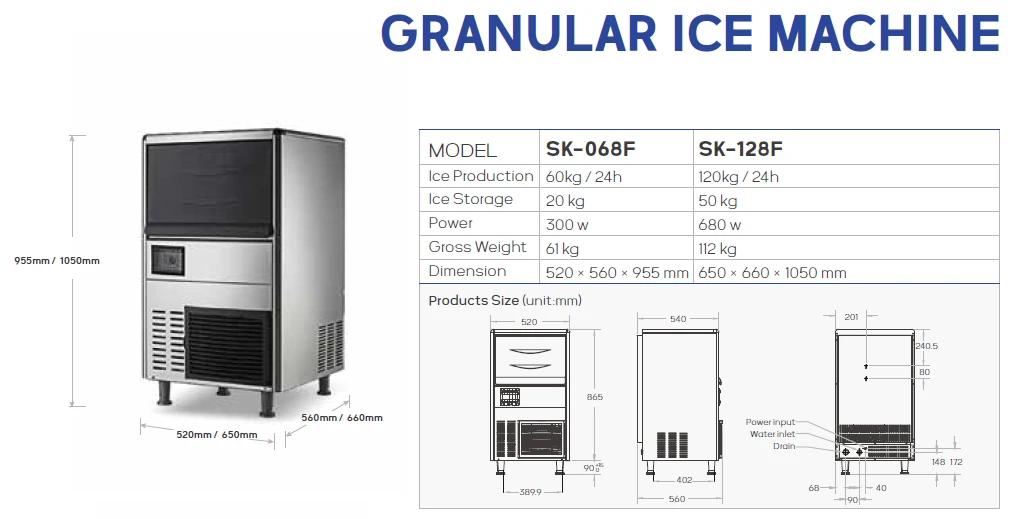

Technical drawing
Standard specification
| Ice shape | Granular / Crushed / Nugget |
|---|---|
| Ice size | Optional |
| Refrigerant | R404A |
| Compressor | Cubigel |
| Cooling system | Air |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Granular / crushed form — moulds to the product for faster chilling
- Slower melt than flake ice, so displays need less topping up
- Air-cooled, 220 V / 110 V
- Compact models and modular heads for larger displays
