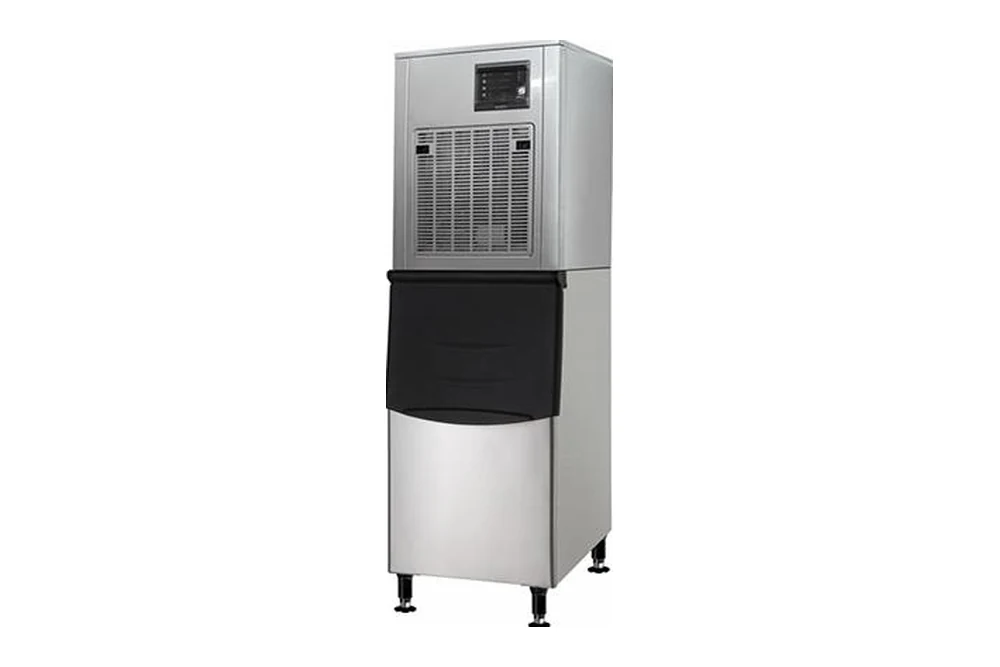

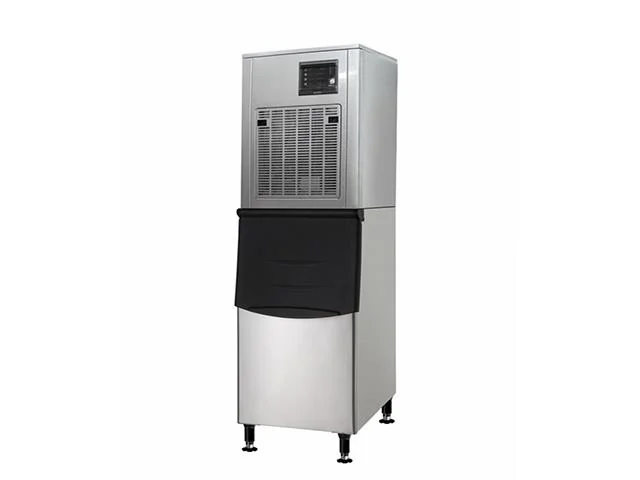

SK-258F / SK-358F / SK-458F
Granular ice machine, modular type — 250 / 350 / 450 kg per 24 h. Modular head, 250–450 kg.
Modular granular heads on a 560 × 830 mm platform with a 125 kg bin, for supermarket seafood counters and market stalls.
Models and output
Modular head, 250–450 kg — 3 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-258F | 250 kg / 24 h | 125 kg | 220 V / 110 V | 1180 W | 130 kg | 560 × 830 × 1760 |
| SK-358F | 350 kg / 24 h | 125 kg | 220 V / 110 V | 1450 W | 135 kg | 560 × 830 × 1810 |
| SK-458F | 450 kg / 24 h | 125 kg | 220 V / 110 V | 2000 W | 140 kg | 560 × 830 × 1860 |

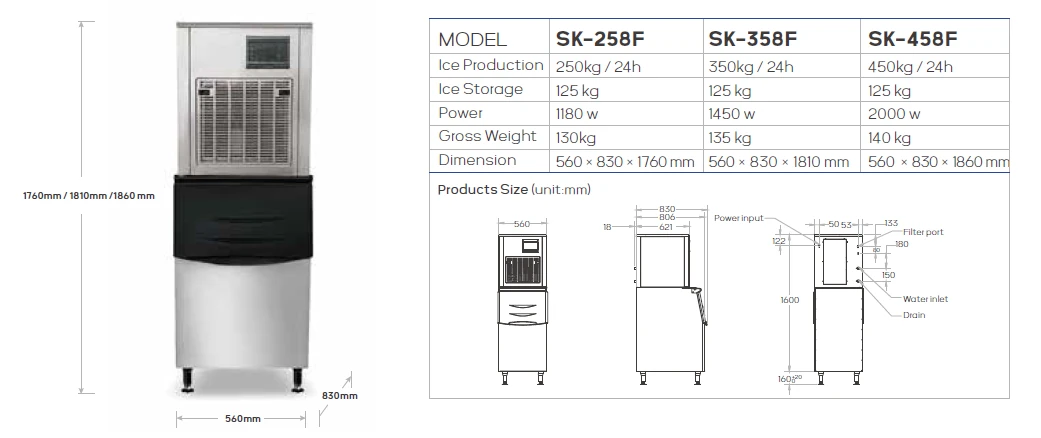

Technical drawing
Standard specification
| Ice shape | Granular / Crushed / Nugget |
|---|---|
| Ice size | Optional |
| Refrigerant | R404A |
| Compressor | Cubigel / Highly |
| Cooling system | Air |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Granular / crushed form — moulds to the product for faster chilling
- Slower melt than flake ice, so displays need less topping up
- Air-cooled, 220 V / 110 V
- Compact models and modular heads for larger displays
