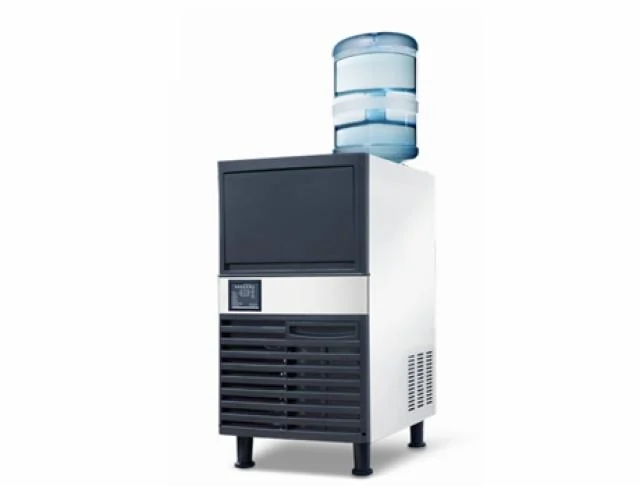

SK-80PT / SK-120PT
Cube ice machine, integrated type with bottled water supply — 36 / 55 kg per 24 h. Integrated, bottled water.
Integrated machine and bin with a bottled-water feed, so no mains plumbing is needed at the point of use. Built for offices, clinics and small cafe counters.
Models and output
Integrated, bottled water — 2 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-80PT | 36 kg / 24 h | 15 kg | 220 V / 110 V | 310 W | 40 kg | 500 × 450 × 840 |
| SK-120PT | 55 kg / 24 h | 18 kg | 220 V / 110 V | 460 W | 50 kg | 500 × 590 × 890 |

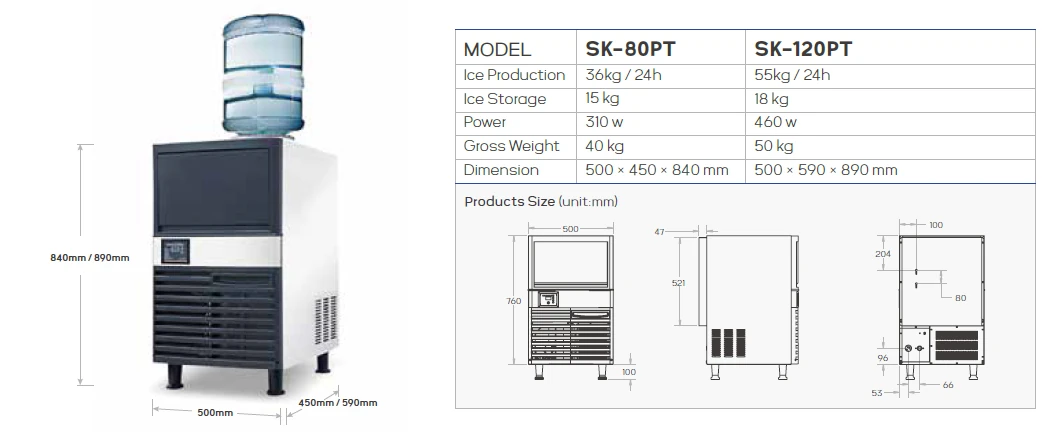

Technical drawing
Standard specification
| Ice shape | Cube |
|---|---|
| Ice size | Optional |
| Refrigerant | R290 |
| Compressor | Cubigel |
| Cooling system | Air |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Modular, vertical, under-counter and integrated formats in one series
- Air or water condensing on the larger modular heads
- R290 on the compact machines, R404A on the high-output heads
- Cubigel or Highly compressor depending on output class
- 304 / 316 stainless steel shell
