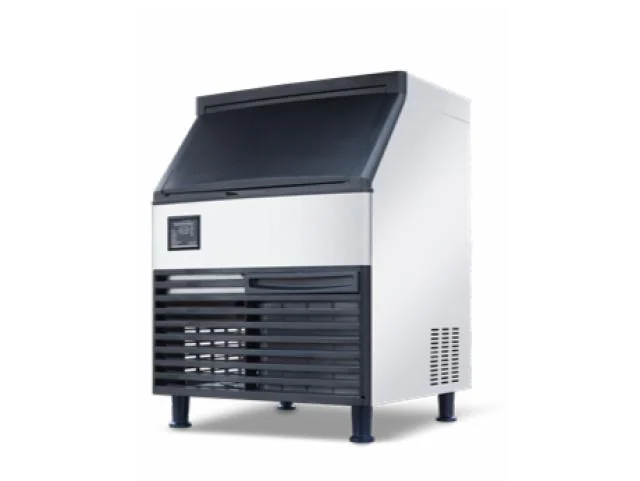

SK-160P / SK-210P / SK-280P
Cube ice machine, vertical type — 73 / 95 / 127 kg per 24 h. Vertical, 73–127 kg.
Free-standing vertical machines with an integrated 36 kg bin and a lift-up door. Three output steps on one 707 mm body, all on R290.
Models and output
Vertical, 73–127 kg — 3 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-160P | 73 kg / 24 h | 36 kg | 220 V / 110 V | 480 W | 65 kg | 660.2 × 707 × 919 |
| SK-210P | 95 kg / 24 h | 36 kg | 220 V / 110 V | 625 W | 66 kg | 660.2 × 707 × 919 |
| SK-280P | 127 kg / 24 h | 36 kg | 220 V / 110 V | 730 W | 67 kg | 660.2 × 707 × 919 |

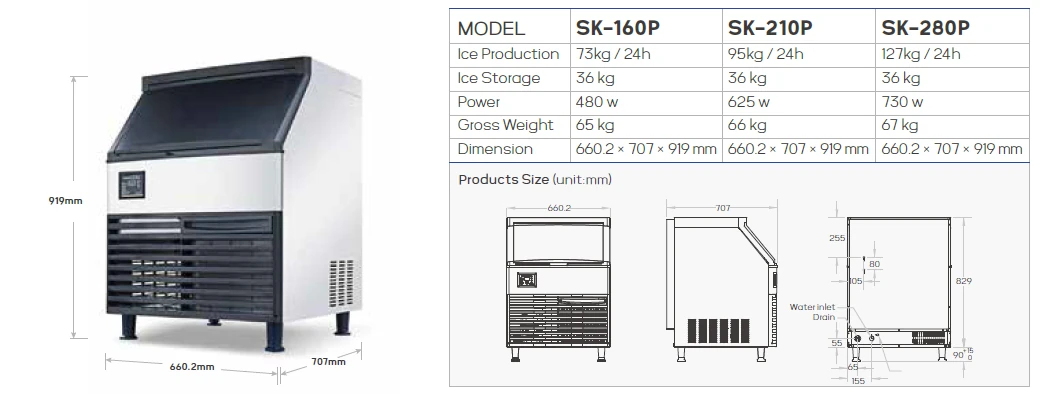

Technical drawing
Standard specification
| Ice shape | Cube |
|---|---|
| Ice size | Optional |
| Refrigerant | R290 |
| Compressor | Cubigel |
| Cooling system | Air |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Modular, vertical, under-counter and integrated formats in one series
- Air or water condensing on the larger modular heads
- R290 on the compact machines, R404A on the high-output heads
- Cubigel or Highly compressor depending on output class
- 304 / 316 stainless steel shell
