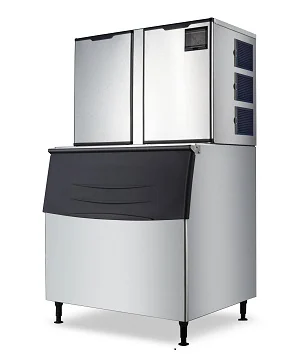

SK-1500P / SK-2000P
Cube ice machine, modular type — 680 / 900 kg per 24 h. Modular head, 680–900 kg.
Two modular cube heads for high-volume production. Both sit on the same 1227 mm platform and pair with a separate storage bin, so the head can be specified without committing the bin footprint first.
Models and output
Modular head, 680–900 kg — 2 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-1500P | 680 kg / 24 h | 350 kg | 220 V / 1P | 3400 W | 220 kg | 1227 × 965 × 1927 |
| SK-2000P | 900 kg / 24 h | 350 kg | 380 V / 3P | 6200 W | 270 kg | 1227 × 965 × 2057 |

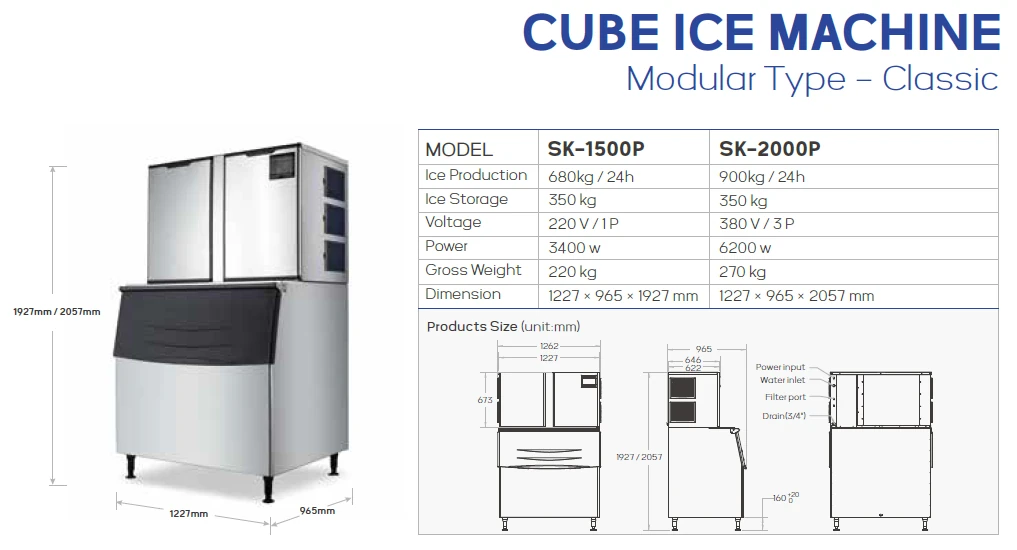

Technical drawing
Standard specification
| Ice shape | Cube |
|---|---|
| Ice size | Optional |
| Refrigerant | R404A |
| Compressor | Highly |
| Cooling system | Air / Water |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Modular, vertical, under-counter and integrated formats in one series
- Air or water condensing on the larger modular heads
- R290 on the compact machines, R404A on the high-output heads
- Cubigel or Highly compressor depending on output class
- 304 / 316 stainless steel shell
