SK-500P / SK-700P
Cube ice machine, modular type — 225 / 315 kg per 24 h. Modular head, 225–315 kg.
The most common hotel and restaurant size. A 760 mm wide modular head with a 170 kg storage bin, available on R290 or R404A depending on the destination market.
Models and output
Modular head, 225–315 kg — 2 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-500P | 225 kg / 24 h | 170 kg | 220 V / 110 V | 1050 W | 120 kg | 760 × 832 × 1715 |
| SK-700P | 315 kg / 24 h | 170 kg | 220 V / 110 V | 1680 W | 122 kg | 760 × 832 × 1715 |

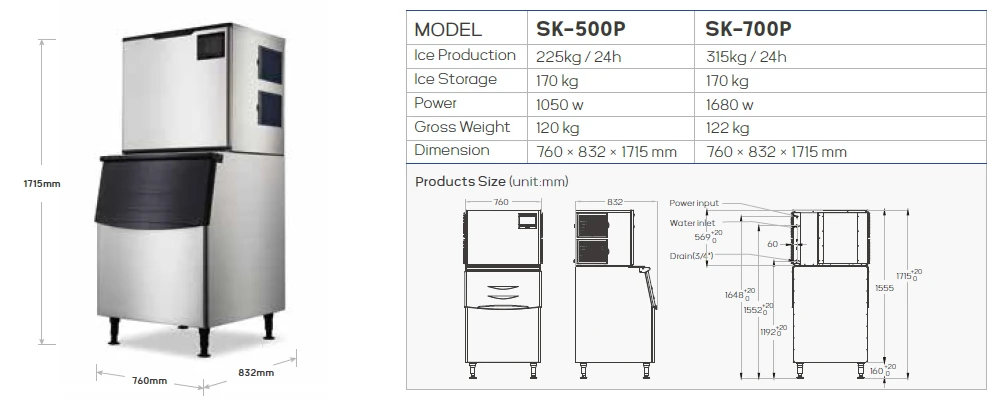

Technical drawing
Standard specification
| Ice shape | Cube |
|---|---|
| Ice size | Optional |
| Refrigerant | R290 / R404A |
| Compressor | Highly |
| Cooling system | Air / Water |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Modular, vertical, under-counter and integrated formats in one series
- Air or water condensing on the larger modular heads
- R290 on the compact machines, R404A on the high-output heads
- Cubigel or Highly compressor depending on output class
- 304 / 316 stainless steel shell
