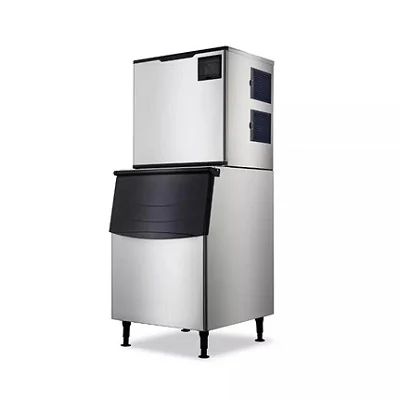

SK-350P / SK-420P
Cube ice machine, modular type — 160 / 190 kg per 24 h. Modular head, 160–190 kg.
A narrower 560 mm modular head on R290 for markets with F-gas restrictions. Suits bars and small kitchens where the 760 mm platform will not fit.
Models and output
Modular head, 160–190 kg — 2 models in this family. Figures are the production partner's catalogue ratings; confirm voltage and refrigerant for your destination market before ordering.
| Model | Ice production | Ice storage | Voltage | Power | Gross weight | Dimensions W×D×H (mm) |
|---|---|---|---|---|---|---|
| SK-350P | 160 kg / 24 h | 125 kg | 220 V / 110 V | 760 W | 94 kg | 560 × 832 × 1715 |
| SK-420P | 190 kg / 24 h | 125 kg | 220 V / 110 V | 790 W | 96 kg | 560 × 832 × 1715 |

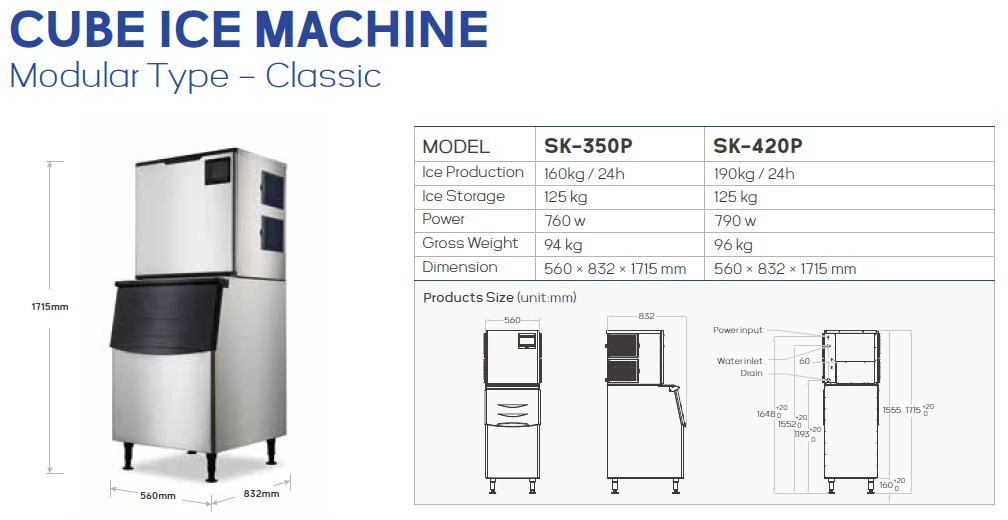

Technical drawing
Standard specification
| Ice shape | Cube |
|---|---|
| Ice size | Optional |
| Refrigerant | R290 |
| Compressor | Highly |
| Cooling system | Air / Water |
| Shell material | 304 / 316 stainless steel |
| Certification | ISO-9001, CE, CB, RoHS, KC, ETL, Energy Star |
| OEM & ODM | Available |
| After-sales | Free spare parts, video technical support, online Q&A support |
| Place of origin | Shanghai, China |
Series features
- Modular, vertical, under-counter and integrated formats in one series
- Air or water condensing on the larger modular heads
- R290 on the compact machines, R404A on the high-output heads
- Cubigel or Highly compressor depending on output class
- 304 / 316 stainless steel shell
